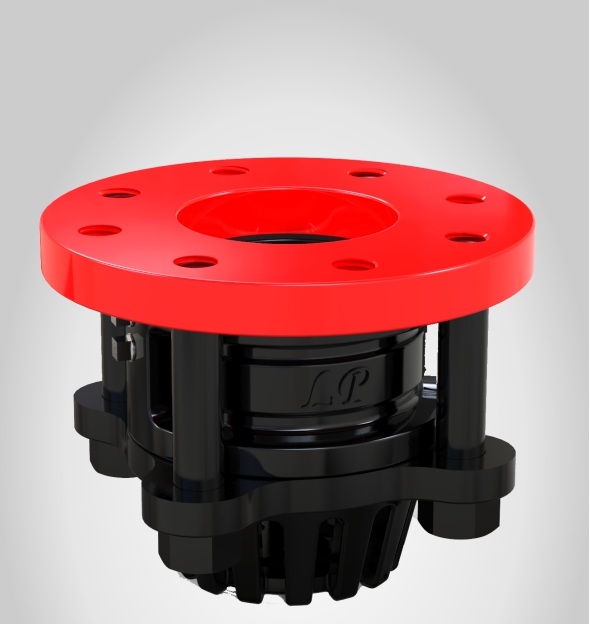

Foot Valve Discription
| Specifications | ||
| Ports: | Single | |
| Body Style: | Double Door Flanged | |
| Size Range: | DN.40 - 300MM | |
| Temperature Range: | < 80 °C | |
| Pressure Ratings: | PN1.0, PN1.6 | |
| Steam Rating: | N/A | |
| End Connections: | Flanged | |
| Body Materials: | S.S/D.I | |
| Seat/Gasket Materials: | NBR-Rubber | |
Specifications & feature:
Rigid & Sturdy design with minimum loss of head
across the valve.Perfectly flat seating surfaces
for good sealing.Preventing entry of foreign body
to pump through suction pipe.Long service life.
Applications:
Foot Valves are used in suction side of the pumps to avoid flow
reversal from pump to sump, In order to maintain pump
priming. They also prevent entry of foreign body into
pump through suction pipe. These valves are suitable for
having clear water within the limits.
Design standard: :
IS-13095, BS-5155

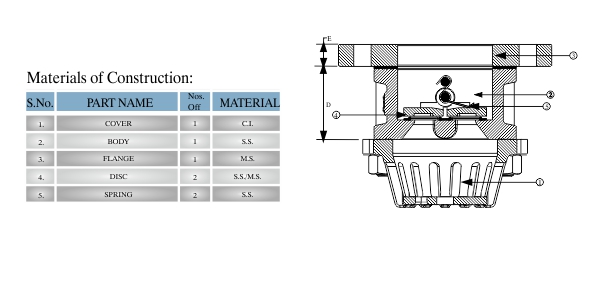

Materials

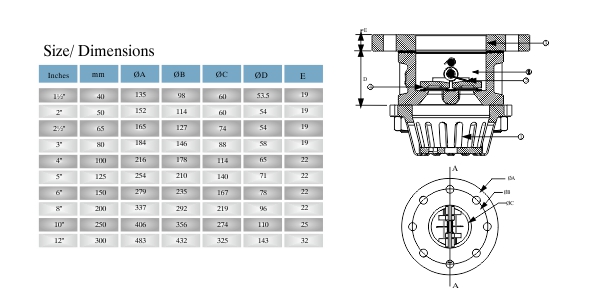

Dimension Details
