BFV Pneumatic Actuator Discription

Specifications
Ports: Single
Body Style: Butterfly
Size Range: DN.25 - 600MM
Temperature Range: < 80 °C
Pressure Ratings: PN1.0, PN1.6
Steam Rating: N/A
End Connections: Lugged
Body Materials: C.I/D.I
Seat/Gasket Materials: NBR-Rubber

Specification & Features::

100% Leak Tight Design. Compact Design to Facilitate Installation. No Part In Contact with Fluid Except Disc & Liner. Low Torque.

Applications :

Paper & Pulp Industry, Waste & Effluent Treatment Plants, Water Treatment, Chemical & Sugar Industry, Fire Fighting, Drilling Rig, Heating & Air Conditioning, Cooling Water Circulation, Compressed Air, Civil Constructions & numerous other applications.

Insertion between flanges:

ANSI B16.1 CL-150, PN-16, BS10 Table-D, BS10 Table-E Design standard: IS-13095, BS-5155

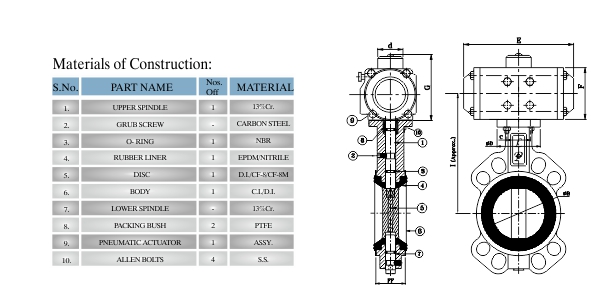

Materials

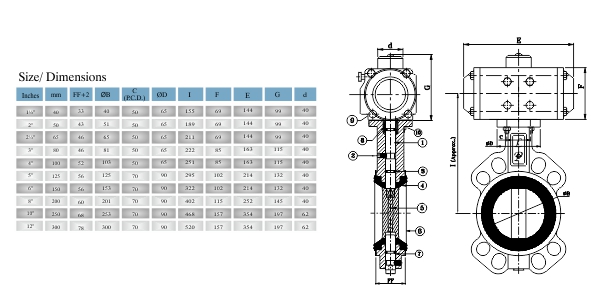

Dimension Details
